Armalite AR-50

Movie
(FILM) Armalite AR-50 (.Rm)

Manual(s)
(MANUAL) ArmaLite AR-50 Manual (.pdf)

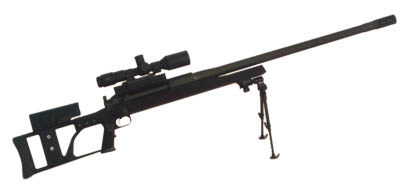

The ArmaLite AR-50 is a single shot bolt action rifle manufactured by ArmaLite.

The AR-50 rifle utilizes its weight and a large fluted muzzle brake to reduce recoil. The AR-50 weighs approximately 34 pounds and is a single shot bolt action rifle. The barrel is thick and rigid, to prevent it from flexing.

The receiver features Armalite`s octagonal design, which strengthens the receiver against flexing. The receiver is bedded to the V-shaped stock, whilst the barrel is free-floated above the forend. The three piece AR-50 stock is constructed from aluminum and features an extruded forend, as well as a skeleton butt stock with a removable and vertically adjustable butt plate.

This rifle was updated to the AR50-A1B model, which featured a smoother action, a new bolt stop that can be depressed by hand to release the bolt, and a more heavily reinforced muzzle brake. The AR50-A1B was designed for long range shooting, primarily firing the .50 BMG Browning Machine Gun. The available rifle configurations are: AR-50A1B chambered for standard .50 BMG, AR50-A1BNM Chambered for .50 BMG Match Grade Ammunition, and AR50-A1B-416 chambered for .416 Barrett.

Weapontype:
Bolt Action Rifle

Manufacturer:
Armalite

Operation:
bolt action

Cartridge:
12.7 mm (.50 in) & .416 Barrett

Weight:
34 lb (15.5 kg)

Length:
59.5 in (1511 mm)

Barrel:
31 in (787 mm)

Rifling:
8 grooves, rh

Magazine Capacity:
Nil - 1 shoot only

Effective range:
2,430 meters (2,657 yards) with proper optics
