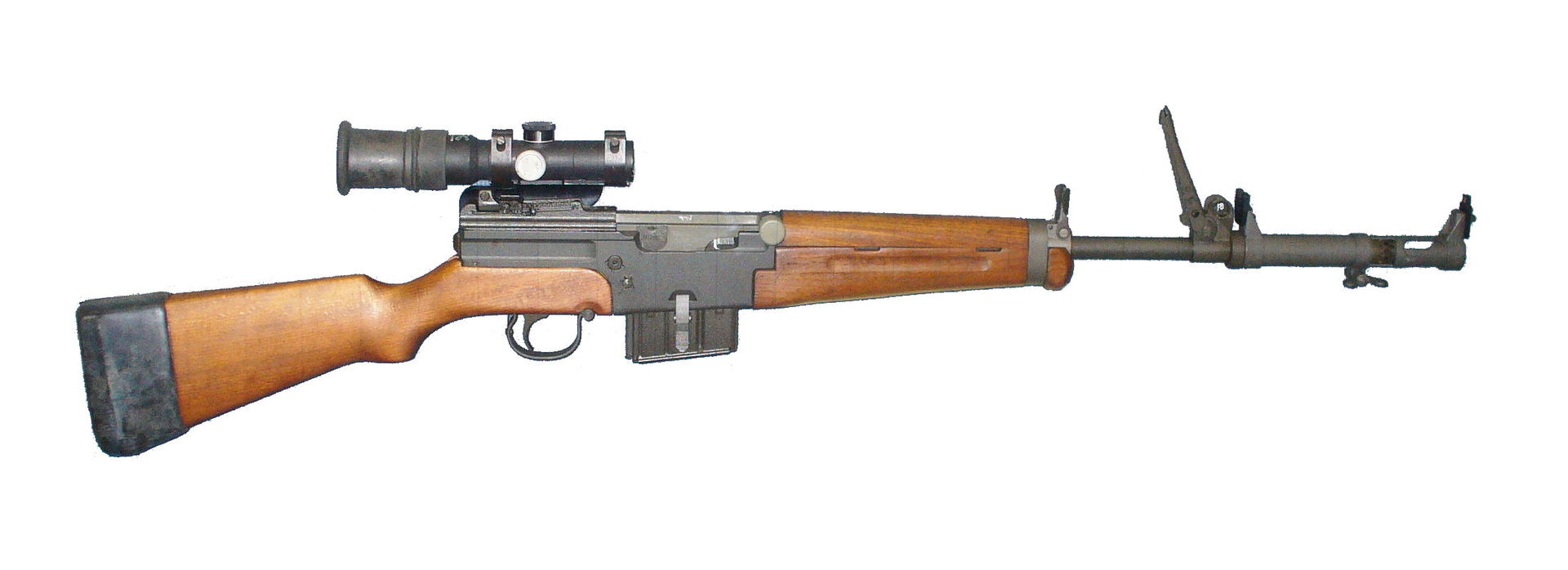

MAS-49/56 with APX(SOM) sight and night sight/flash suppressor attachment, grenade launching sight and gas cutoff both raised

Other Pictures:
Syrian contract MAS-49 rifle

The MAS-49
is a French semi-automatic rifle that replaced various bolt action rifles as the French service rifle that was produced from 1949. It was designed and manufactured by the government-owned MAS arms factory. The French Army formal designation of the MAS-49 is Fusil semi-automatique 7 mm 5 M. 49 ("semi-automatic rifle of 7.5mm model [19]49"). The MAS-49 semi-automatic rifle was produced in limited quantities (20,600 units), whereas the shorter and lighter variant, the MAS-49/56, was mass manufactured (275,240 units) and issued to all branches of the French military. Overall, the MAS-49 and 49/56 rifles gained the reputation of being accurate, reliable and easy to maintain in adverse environments. All the MAS-49 and 49/56 rifles feature a rail on the left side of their receivers to accommodate a designated rifle scope. The MAS-49 and MAS-49/56 were replaced as French service rifles by the FAMAS assault rifle in 1979.

The MAS-49 arrived after a series of small, swiss replica watches distinct design improvements. Today, this might be termed spiral development, where small elements are changed with successive models, rather than large significant changes. This French semi-automatic rifle evolved from the prototype MAS-38/39 and from the MAS-40 which entered limited service in March 1940, and lastly from the post-war MAS-44 and its minor variants 44A, 44B and 44C. Although 50,000 MAS-44 rifles were ordered in January 1945, only 6,200 were delivered to the Marine Nationale. The MAS-49 was formally adopted by the French Army in July 1949. As a service rifle, it replaced the diverse collection of aging bolt-action rifles (MAS-36, Lee–Enfield No4, U.S. M1917, Berthier, and K98k) that were in French service after the end of World War II. It saw significant service with French troops in the latter stages of the First Indochina War, as well as during the Algerian War and the Suez Crisis.

An improved version called the MAS-49/56 was introduced in 1957 and incorporated lessons learned from service in Algeria, Indochina, and the Suez Crisis. The rifle was shortened and lightened to improve mobility for mechanized and airborne troops, and a knife bayonet was added. The MAS-49 built-in rifle grenade launcher was replaced by a combination compensator/rifle grenade launcher that fired NATO-standard 22mm rifle grenades. The rifle also incorporates an integral grenade launching sight that is attached to the front sight block and a gas cutoff that prevents gas from entering the gas tube from the gas port when firing grenade launching blank ammunition.

Attempts were made to replace the MAS-49, in the form of the MAS-54 and the FA-MAS Type 62, both 7.62×51mm NATO battle rifles, but neither were successful. The MAS-49/56 ended production in 1978 and was replaced with the 5.56×45mm NATO caliber FAMAS bullpup assault rifle. The MAS-49/56 was withdrawn from service in 1990. Whereas only 20,600 MAS-49 were manufactured, the MAS-49/56 was mass-produced, attaining a total of 275,240 rifles issued between 1957 and 1978.

Technical characteristics
The direct impingement gas system was first applied in 1901 to a 6mm semi-automatic experimental rifle (the ENT B-5) designed by Rossignol for the French military (by definition, the direct impingement system lacks a gas piston). Although several experimental prototypes using a tilting bolt and direct impingement had been tested by MAS since 1924, the immediate precursor to the MAS 7.5mm semi-automatic rifle series is the MAS-38/39. It was successfully tested in March 1939, just before World War II, and followed in May 1940 by the nearly identical MAS 1940. Similar direct impingement designs include the Swedish semi-automatic Ag m/42 adopted in 1942 and the US M16 select-fire rifle adopted in 1963. In the MAS-49 system gas is vented from a port on top of the barrel and piped directly into an open cylindrical hollow located in front and on top of the bolt carrier. The system has the advantage of not depositing gas fouling on the bolt itself, a separate part located underneath the bolt carrier. All the French MAS 7.5mm semi-automatic rifles mentioned herein feature a rear-locking tilting bolt, as on the M1895 Colt–Browning machine gun, the Browning Automatic Rifle (1918), the MAS-1924 to MAS-1928 experimental semi-auto rifles, and the Russian Simonov SVT-38 (1938) and SVT-40 (1940) rifles.

The same 10-round detachable magazine fits the MAS-44, MAS-49 and MAS-49/56 rifles. The earlier MAS-40 (1940) rifle had a 5-round magazine within the receiver, as on the bolt action MAS-36 rifle. Lastly, the MAS-49 and MAS-49/56 are equipped with a rail on the left side of the receiver. It allows for the immediate installation of a "Modele 1953" APX L806 (SOM) telescopic sight by sliding it into place and then locking it in with a small pressure lever. The MAS-49 and MAS49/56 are capable of consistently hitting individual man-size targets up to 400 meters with the adjustable peep sight and up to 800 meters with the APX 806L telescopic sight. The bore is counter sunk at the muzzle to protect the rifling and preserve accuracy. The barrel is freely floating.

The MAS direct impingement design reduced the number of bolt moving parts to only six: the bolt carrier, then the rear locking tilting bolt which carries the extractor, the ejector and the firing pin, and lastly the recoil spring. It takes only a few seconds to disassemble the entire bolt mechanism for cleaning. The MAS-49 had a reputation for reliability in conditions of poor maintenance, sometimes being cleaned with nothing more than rags and motor oil. The rifle could also endure harsh service environments (MAS rifles saw service in Algeria, Djibouti, Indochina, and French Guiana).

MAS-49 rifles produced for Syria differed slightly from the French service model by having a spike bayonet identical to that of the MAS-36.

Surplus imports to the US
Many MAS-49/56 rifles imported as surplus into the United States were rechambered locally by Century Arms International to fire the 7.62mm NATO round. However several user reports have noted that these particular conversions were often unsatisfactory (resulting in numerous action stoppages and misfires) due to imperfect workmanship. Furthermore, the shortening of the barrel to allow rechambering brings the gas vent closer to the chamber hence creating a higher stress on the bolt carrier. In addition to these Century Arms conversions, approximately 250 MAS-49/56 rifles were converted in France to 7.62×51mm NATO for use by the French National Police. These rifles are not known to have the reliability issues that plague the later Century Arms conversions.

Commercial 7.5×54mm "French" ammunition made in countries other than France for current distribution have been known to produce burst fire (2 or 3 rounds at a time) because of more sensitive primers. The original heavy steel firing pins on the MAS-49 and 49/56 can be replaced by commercial titanium firing pins which are much lighter and generally cure the problem of burst fire on these weapons. It is also possible to prevent these slamfires by shortening the firing pin by approximately 0.5 mm, or by modifying the bolt to accommodate a firing pin return spring.

- MAS-49
- MAS-49/56
- MAS-49 Syrian contract

Used by
- Algeria
- Central African Republic
- France
- Monaco: Compagnie des Carabiniers du Prince.
- Niger
- Vietnam
- Syria
- Lebanon
- Zimbabwe
- Morocco

- World War II (MAS-40)
- First Indochina War
- Algerian War
- Suez Crisis
- 1958 Lebanon Crisis
- Vietnam War
- Shaba II
- Lebanese Civil War
- Syrian Civil War

No. built
- 20,600 (MAS-49)
- 275,240 (MAS-49/56)

MAS 49/56 Run and Gun (the one where everything goes wrong) (TFBtv)

Semi-automatic rifle

Manufacture d`armes de Saint-Étienne

Direct impingement gas operation

7.5×54mm French

7.5 mm

4.7 kg (10 lb 6 oz) (MAS-49), 4.1 kg (9 lb) (MAS-49/56)

1100 mm (43.35 in) (MAS-49), 1020 mm (40.2 in) (MAS-49/56)

580 mm (22.8 in) (MAS-49), 525mm (20.7 in) (MAS-49/56)

Magazine Capacity:

Feed system:
Detachable box magazine

In service dates:
1951–1979 (as standard French service rifle)

In Production:

Iron sights adjustable from 200 to 1200 meters Removable APX(SOM) telescopic sights

Rate of fire:

Effective range:
400 m (437 yd), 800 m (875 yd) (with telescopic sight)

Muzzle Velocity:
820 m/s (2,690 ft/s)
