Madsen m/50

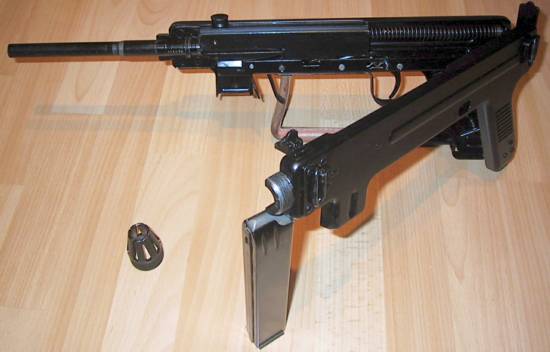

Disassembly of the Madsen. Barrel nut removed, gun partially opened to expose the bolt and return spring

Other Pictures:
Madsen m/50, with butt folded

Madsen m/50, with butt open

Madsen m/50 completely disassembled. Note the magazine loading tool stored inside the pistol grip in the right (left as seen on picture) part of the gun.

Manual(s)
(MANUAL) Assorted Blueprints (.pdf)

symbicort generic date

symbicort inhaler dosage

viagra prodej cena

viagra wiki go
The famous Danish company Dansk Industrie Syndicat AS `Madsen`, usually referred simply as Madsen, manufactured various weapons since the early 1900s. Soon after the war Madsen produced a 9mm m/46 submachine gun, which was one of the last wood-stocked SMG`s to be produced. In 1949 Madsen introduced more modern design, the m/49, which featured an entirely stamped receiver, integral with pistol grip and magazine housing. This SMG also featured unusual charging handle, a bracket-shaped slider above the receiver. But the most unusual feature of the m/49 was the field stripping procedure. The receiver was made from two halves, left and right, hinged at the rear, and held together at the front by the screw-on barrel nut. To disassemble the gun, one must unscrew the barrel nut, and then open the left side of the receiver/housing. Barrel, bolt, return spring and trigger unit will remain in the right "half" of the gun, easily accessible. The hollow pistol grip contained magazine loading tool, and there wee no manual safeties; instead, Madsen m/49 had an automatic safety in the form of the lever just behind the magazine housing; to fire the gun, one must grasp the magazine and this lever securely by non-firing hand, to be able to release the bolt. Otherwise, the m/49 was a fairy conventional blowback design, which fired only in full auto.

Next year Madsen introduced the M/50, a slightly modified M/49 with more conventional and comfortable charging handle at the top of the gun, and in 1953 Madsen introduced the last gun in this line, M/53, which differed mostly in that it used a curved magazines instead of straight ones, and can be fitted with optional barrel shroud, which had a bayonet mount lug. Madsen SMG`s were sold to various Asian and South American countries. Brazil makes licensed copy of Madsen in .45ACP caliber.

Weapontype:
Submachine Gun

Cartridge:
9 mm Parabellum

Weight:
3.17

Length:
(stock closed/open): 530 / 800 mm

Barrel:
200 mm

Rifling:
4 grooves, rh

Magazine Capacity:
32 rounds

Rate of fire:
500 RPM

Effective range:
100 Meter
