SA Vz.58

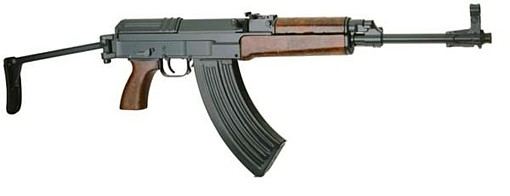

Vz.58V with folding buttstock

Other Pictures:
Vz.58P with fixed buttstock

abortion clinic brick nj

abortion clinic brick nj click here
The Samopal vzor 1958 (submachine gun, model of 1958) was the standard assault rifle of the Czechoslovak army from the late 1950s and until the dissolution of the SSR in the 1993. At the present time the SA Vz.58 is still used by the Czech and Slovak armies, as well as sold for export in some quantities. The SA Vz.58 saw not much of real combat, so it is hard to judge how it stakes up against the most known contemporary rivals, like the Soviet / Russian AK-47 or the US M16A1. But the overall quality, fit and finish of this rifle is excellent. This rifle had been designed by the Czech arms designer Ji ermk, under the project codename "KOT", or "Broom", in English. Development began in January of 1956, and the rifle was adopted for service only 2 years later, in 1958. The rifle was manufactured by the state-owned arms factory "esk zbrojovka", located in the town of Uhersk Brod (CZ-UB).

The Czech army planned to replace the SA Vz.58 with the newest CZ-2000 rifle system, chambered for 5.56mm NATO ammunition, but the financial difficulties severely slowed down this process.

The SA Vz.58 strongly resembles externally the famous Kalashnikov AK-47 assault rifle, but internally it is entirely different and of original and well-thought out design.

Technical description.
The SA Vz.58 is a gas operated, magazine fed, selective fire weapon. It uses more or less conventional short stroke gas piston, located above the barrel. The gas piston has its own return spring. The locking system features a linearly moving bolt (breechblock) with a separate tilting locking piece. The breechblock (bolt) is located under the bolt carrier, and the locking piece is hinged to the bolt and located under it. Gun fires from the closed bolt all times. When gun is fired, the gas piston gives a short tap to the bolt carrier. After a free movement of about 22 mm (.9 inch) the bolt carrier swings the locking piece up from the locking recesses in the receiver, and thus unlocks the bolt. From this moment on the bolt group moves back at once, extracting and ejecting the spent case and chambering the fresh cartridge. At the end of the return stroke the bolt stops in the forwardmost position against the breech face, while the bolt carrier continues to move forward, swinging the locking piece down and into the locking recesses, thus locking the bolt to the receiver. The overall system can be roughly described as a mix between the Walther P-38 pistol and the Czech ZB-26 (or British Bren) machine gun locking. The charging handle is attached to the right side of the bolt carrier.

The trigger / hammer unit also differs from the most common designs in that it is a striker fired design. The massive cylindrical striker is located at the rear, hollowed part of the bolt, and has its own spring located under the bolt group return spring. The striker has a lug that interacts with the sear and is used to hold the striker in the cocked position. The overall design of the trigger unit is relatively simple and has few moving parts. The safety / fire mode selector switch is located at the right side of the receiver, and has 3 positions for safe, single shots and full automatic fire.

The basic variant, SA Vz.58P, has a fixed buttstock, and furniture made either from wood (early models) or from wood-impregnated plastic (late production models). The SA Vz.58V has a side-folding metallic buttstock, and the SA Vz.58Pi is similar to the SA Vz.58P except that it has a large mounting bracket on the left side of the receiver, that allows for the IR / Night sights to be mounted.

The sights are of open type, with hooded front post and open notch adjustable rear.

Automatic Rifle

Gas operated, tilting breech block

7.62x39 mm

3.60 kg

845 mm (635 mm with folded stock)

390 mm

Magazine Capacity:
30 Rounds

Rate of fire:
800 RPM

Effective range:
400 meters
